SPRING MEADOW TYPE A
LAND SIZE: 32'x70'
BUILD UP FROM: 3,461 sq.ft.
ROOMS 5 + 1
BATHROOMS 6

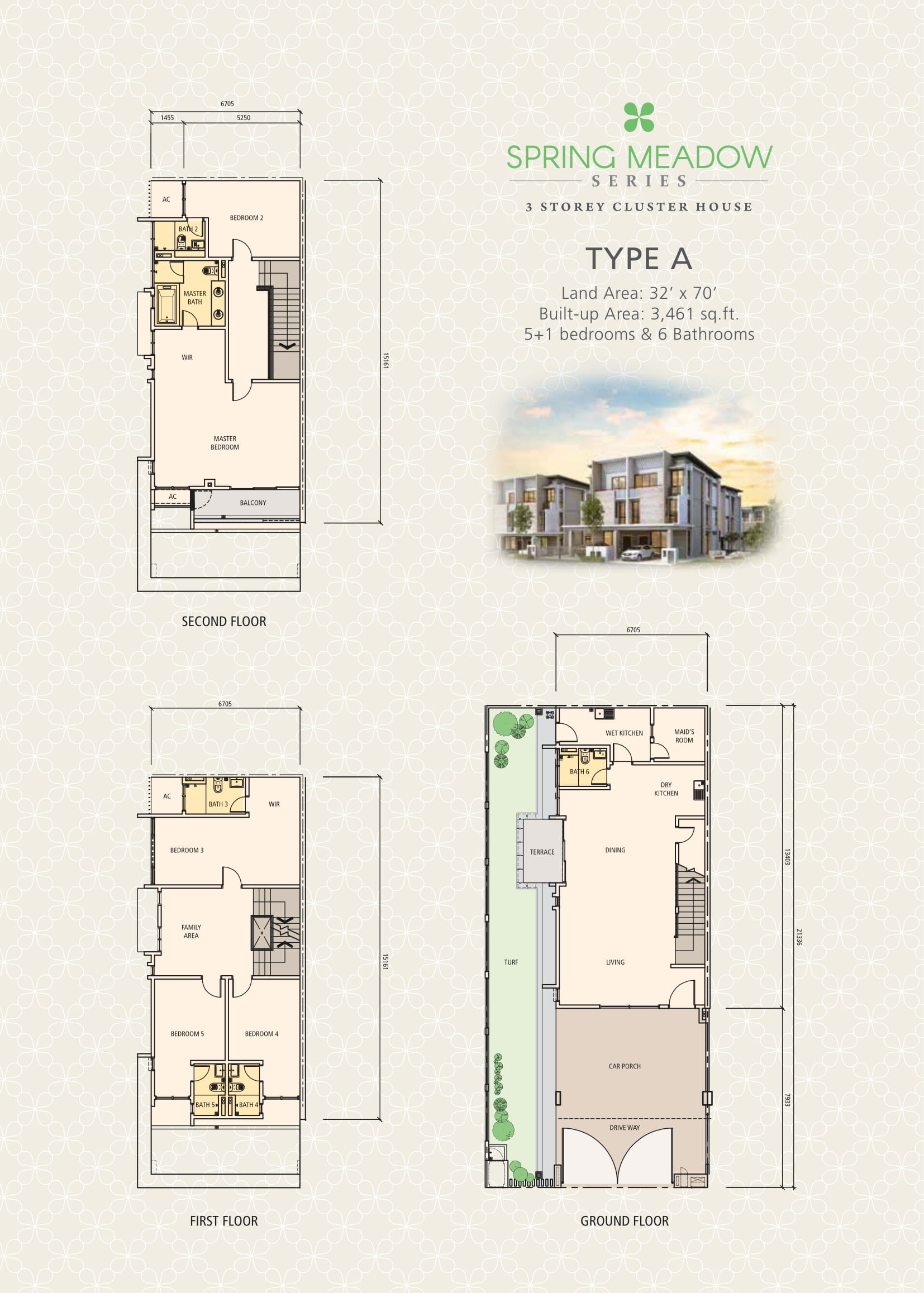

FlOOR PLAN
SPECIFICATIONS
| Structure | : | Reinforced concrete |
| Bricks | : | Clay Brick |
| Roof | : | Metal deck roof |
| Roof Structure | : | Steel roof truss |
Ceiling |
||
| Ground floor | : | General Skim coat & Fiber plaster board |
| First floor | : | Skim plaster & Fiber plaster board |
| Second floor | : | Fiber plaster board |
| Car porch | : | Skim plaster & Fiber plaster board |
Floor Finishes |
||
| Car porch & Driveway | : | Homogeneous tiles |
| Main entrance area | : | Homogeneous tiles |
| Balcony | : | Homogeneous tiles |
| All bedrooms | : | Porcelain tiles |
| Wet kitchen & Maid’s room | : | Porcelain tiles |
| Living, dining & Dry kitchen | : | Porcelain tiles |
| Family area (1st floor) | : | Porcelain tiles |
| Master bathroom (2nd floor) | : | Porcelain tiles |
| Staircase | : | Porcelain tiles |
| Bathroom 2, 3, 4 & 5 | : | Ceramic tiles |
Wall Finishes |
||
| Dry kitchen & Wet kitchen | : | Ceramic tiles to 5ft height |
| Master bathroom (2nd floor) | : | Porcelain tiles to ceiling level |
| Bathroom 2, 3, 4 & 5 | : | Ceramic tiles to ceiling level |
Door |
||
| Main entrance | : | Decorative timber door on H.W frames |
| All bedrooms | : | Generally timber flush doors on metal frames |
| All bathrooms | : | Plywood door on metal frames (waterproofing lining internally) |
| Balcony | : | Powder coated aluminum frame sliding doors |
| Terrace (Ground floor) | : | Powder coated aluminum frame sliding doors |
| Maid’s room | : | Timber flush door on metal frames |
| Dry kitchen | : | Timber flush doors on metal frames |
| Wet kitchen | : | M.S. grille door |
Windows |
||
| All windows | : | Powder coated aluminum frame window |
Sanitary Fittings |
||
| Pedestals W.C | : | 6 |
| Wash basins | : | 7 |
| Bib taps | : | 8 |
| Kitchen sinks | : | 2 |
| Toilet roll holders | : | 6 |
| Shower heads | : | 6 |
| Long bath | : | 1 |
Electrical Fitting & Electrical Supply |
||
| Lighting points | : | 41 |
| Ceiling fan points | : | 7 |
| 13A (Single) power points | : | 2 |
| 13A (Twin) power points | : | 14 |
| Telephone points | : | 3 |
| TV points | : | 3 |
| Water heater power points | : | 6 |
| Door bell points | : | 1 |
| Gate pillar lighting points | : | 2 |
| Data points | : | 3 |
| Air-con power points | : | 8 |
| CCTV point | : | 3 |
| Auto gate point | : | 1 |
| Polythene pipe with junction box c/w draw wire for auto gate | : | 1 |
| Locks | : | Selected quality lock set |
| Fencing | : | Brick fencing with M.S grille |
| Anti-Termite Treatment | : | Anti-termite treated |
